Widebody cargo

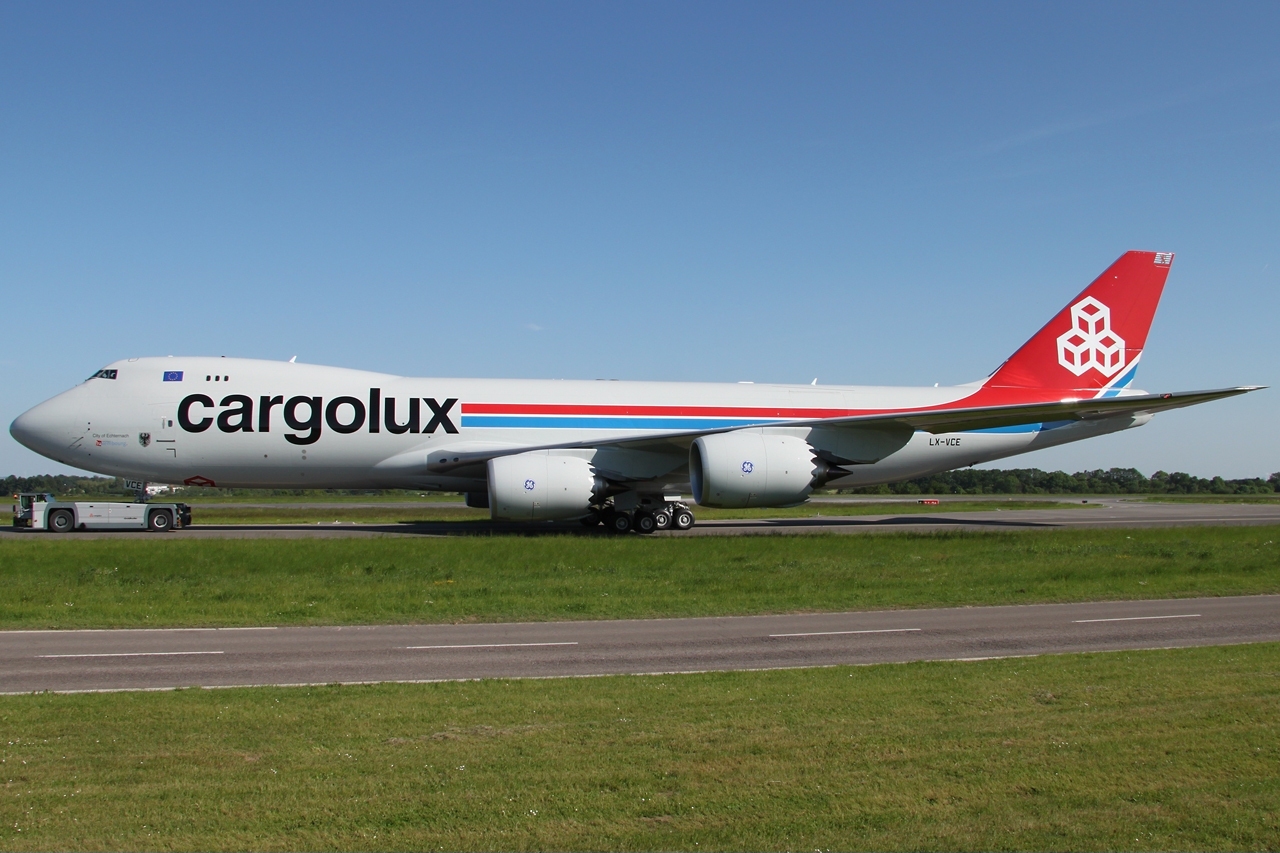

Boeing B747-8F
Boeing Boeing B747-8F, payload 134t, 858 m³ of volume. Available for charter via Dynami Aviation OPS.
Gallery
Overview
The Boeing 747-8F is the latest and largest freighter version of the 747 family, with a stretched fuselage compared to the 747-400F. It offers the best payload in the range at 134 t for 858 m3 of volume.
Launched in the early 2010s, the 747-8F features new-generation GEnx engines, quieter and more fuel-efficient than those of the 747-400F, along with a stretched fuselage offering more usable volume.
It retains the characteristic hinged nose of the 747 family, allowing frontal loading of long items such as aircraft sections, industrial machinery or space equipment.
The 747-8F is the reference aircraft for exceptional freight requiring both very large volume and maximum payload over long distances.
Dynami Aviation OPS can arrange the charter of a 747-8F for your most demanding operations, with dedicated end-to-end support.
Technical specifications
Manufacturer
Boeing
Powerplant
4× turbofan GEnx-2B67
Max payload
134 t
Volume soute
858 m³
MTOW
447 696 kg
Cruise speed
903 km/h
Cargo hold dimensions
| Compartment | Length | Width | Height | Volume |
|---|---|---|---|---|
| Main Deck totalPont principal | 58,4 m | 6,1 m | 3,17 m | 594 m³ |
| Lower Deck FWDSoute avante | 17,5 m | 5,03 m | 1,68 m | 71 m³ |
| Lower Deck AFTSoute arrière | 14,8 m | 5,03 m | 1,68 m | 59 m³ |
| Bulk (Z compartment)Vrac arrière | n/a | n/a | n/a | 26 m³ |
Cargo doors
| Door | Location | Width | Height | Access |
|---|---|---|---|---|
| Nose door | Forward, Main Deck | 356 cm140″ | 249 cm98″ | Frontal, long items |
| MD side door (SL) | Left side, Main Deck | 340 cm134″ | 312 cm123″ | Palettes ULD Main Deck |
| LD forward door (FWD) | Forward, Lower Deck | 175 cm69″ | 168 cm66″ | LD-3 / LD-6 |
| LD aft door (AFT) | Aft, Lower Deck | 175 cm69″ | 168 cm66″ | LD-3 / LD-6 |
| Bulk door | Aft, Bulk compartment | 91 cm36″ | 122 cm48″ | Bulk cargo |
Accepted ULDs, Types & dimensions
| Désignation | IATA code | Length | Width | Max height | Volume | Max weight | Deck |
|---|---|---|---|---|---|---|---|
| Main Deck pallets | |||||||
| PMC, Pallet 96″×125″ | PMC | 317 cm | 244 cm | 244 cm | ~13 m³ | 6 804 kg | MD |
| PAG, Pallet 96″×238″ | PAG | 605 cm | 244 cm | 244 cm | ~25 m³ | 11 340 kg | MD |
| Lower Deck containers | |||||||
| LD-3, Container AKE | AKE | 153 cm | 159 cm | 163 cm | 4,6 m³ | 1 588 kg | LD |
| LD-6, Container AAF | AAF | 317 cm | 153 cm | 163 cm | 7,1 m³ | 3 175 kg | LD |
Loading configurations
| Configuration | Main Deck / Soute | Lower Deck | Max payload | Usable volume |
|---|---|---|---|---|
| Standard PMC config. | 32× PMC (96″×125″) | 32× LD-3 (AKE) | 134 t | 858 m³ |
| Full PAG config. | 22× PAG (96″×238″) | 32× LD-3 (AKE) | 130 t | 820 m³ |
What is the maximum payload of the Boeing B747-8F?
The Boeing B747-8F can carry up to 134 t of cargo.
What is the range of the Boeing B747-8F?
The Boeing B747-8F has a range of approximately 8 130 km.
What is the cruising speed of the Boeing B747-8F?
The Boeing B747-8F cruises at approximately 903 km/h.
How can I charter a Boeing B747-8F with Dynami Aviation OPS?
You can charter a Boeing B747-8F by contacting our experts, available 24/7, for a quote tailored to your needs.
